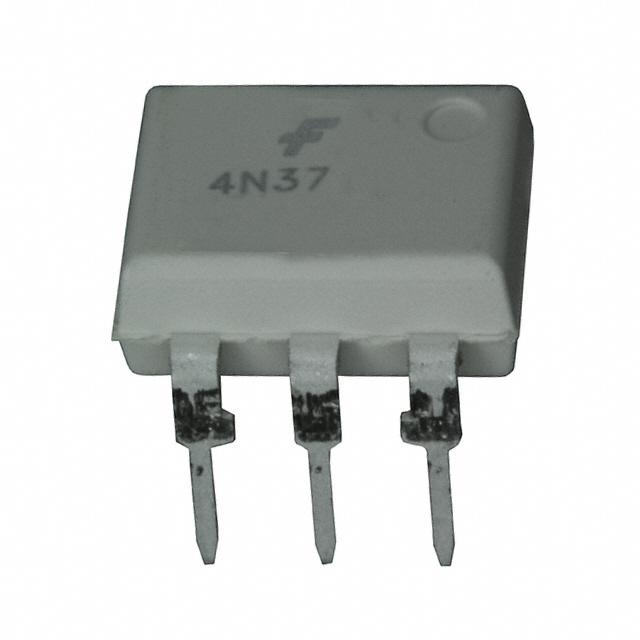

4N37M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4N37M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4N37M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4N37M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.238 | $0.186 | $0.133 | $0.102 | $0.079 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 4N37M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV TRANS W/BASE 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 276650 pcs | Data sheet | 4N25-28M,35-37M,H11AxM |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.18V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 2µs, 2µs |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor with Base |
| Other Names | 4N37-M 4N37MFS |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 60mA | Base Part Number | 4N37 |
