CONSMA015
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CONSMA015 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CONSMA015 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CONSMA015 |
|---|---|
| Manufacturer | Linx Technologies |
| Description | CONN SMA RCPT STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.051 | $1.88 | $1.71 | $1.656 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CONSMA015 | Manufacturer | Linx Technologies |
|---|---|---|---|
| Description | CONN SMA RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22240 pcs | Data sheet | SMA and RP-SMA SpecsCONSMA015 DrawingRF Connector Overview Guide~ |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

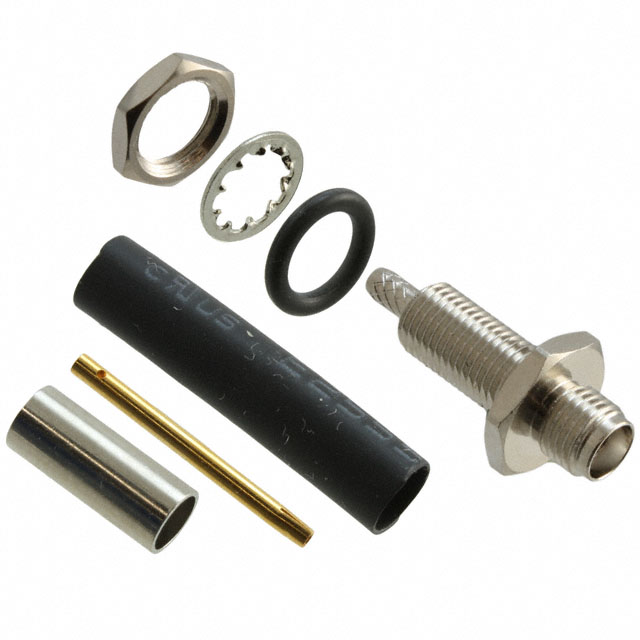

| Ingress Protection | - | Includes | 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 12.4GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMA Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Female Socket | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | RG-174 | Body Material | Brass |
| Body Finish | Nickel |
