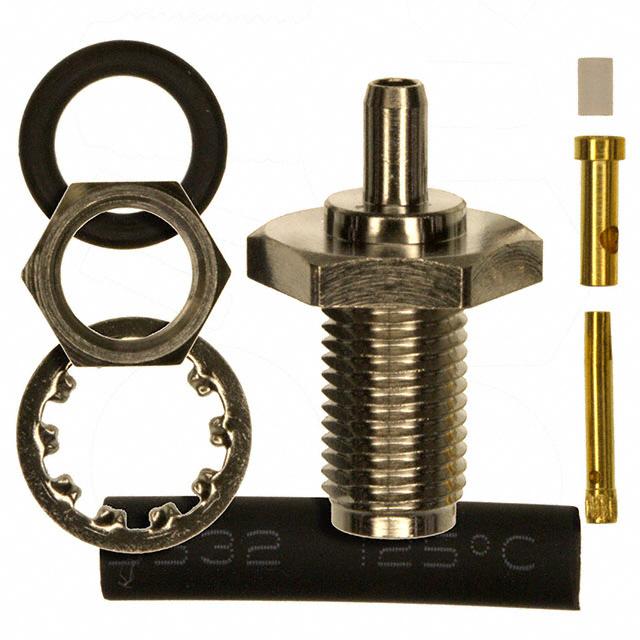

CONSMA014-R178
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CONSMA014-R178 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CONSMA014-R178 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CONSMA014-R178 |
|---|---|
| Manufacturer | Linx Technologies |
| Description | CONN SMA RCPT STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.822 | $1.672 | $1.515 | $1.471 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CONSMA014-R178 | Manufacturer | Linx Technologies |
|---|---|---|---|
| Description | CONN SMA RCPT STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26674 pcs | Data sheet | SMA and RP-SMA SpecsRF Connector Overview Guide~CONSMA014-R178 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | CONSMA014R178 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 8 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 1 Support | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 12.4GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-178 |
| Body Material | Brass | Body Finish | Nickel |
