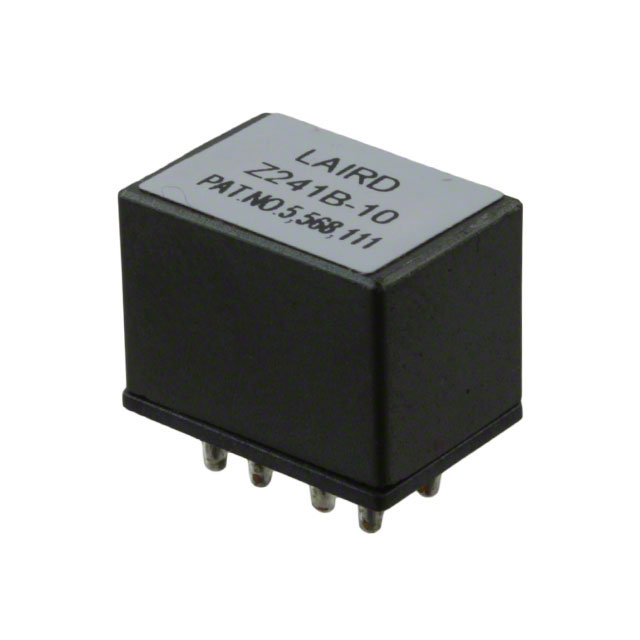

CM5740Z241B-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM5740Z241B-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM5740Z241B-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM5740Z241B-10 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | CMC 20A 4LN 100 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.183 | $1.984 | $1.349 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.23 | $1.151 | $1.111 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM5740Z241B-10 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | CMC 20A 4LN 100 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34118 pcs | Data sheet | Part Number GuideEMI Filtering/RF Inductors CatalogCM5740Z241B-10 DrawingFerrite EMI Cable Cores Catalog |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.570" L x 0.395" W (14.48mm x 10.03mm) |
| Series | CM | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 8 PC Pin |
| Other Names | 240-2577 CM5740Z241B10 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance @ Frequency | 100 Ohms @ 100MHz |
| Height (Max) | 0.424" (10.77mm) | Filter Type | Power, Signal Line |
| Features | - | Detailed Description | 4 Line Common Mode Choke Through Hole 100 Ohms @ 100MHz 20A DCR 1.3 mOhm |
| DC Resistance (DCR) (Max) | 1.3 mOhm | Current Rating (Max) | 20A |
| Approvals | - |
