CM5740Z171B-10

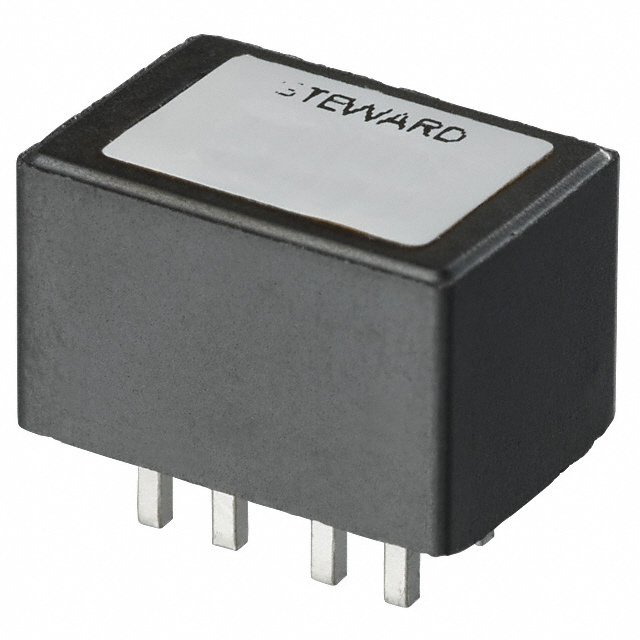

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM5740Z171B-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM5740Z171B-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM5740Z171B-10 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | CMC 20A 4LN 170 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.016 | $0.937 | $0.655 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.531 | $0.484 | $0.468 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM5740Z171B-10 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | CMC 20A 4LN 170 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63784 pcs | Data sheet | Part Number GuideEMI Filtering/RF Inductors CatalogCM5740Z171B-10 DrawingFerrite EMI Cable Cores Catalog |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.570" L x 0.395" W (14.48mm x 10.03mm) |
| Series | CM | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 8 PC Pin |
| Other Names | 240-2490 CM5740Z171B10 |
Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 4 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 170 Ohms @ 100MHz | Height (Max) | 0.508" (12.90mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 4 Line Common Mode Choke Through Hole 170 Ohms @ 100MHz 20A DCR 1 mOhm | DC Resistance (DCR) (Max) | 1 mOhm |
| Current Rating (Max) | 20A | Approvals | - |
