Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Arrays, Pre-Biased > UMG7NTR

UMG7NTR

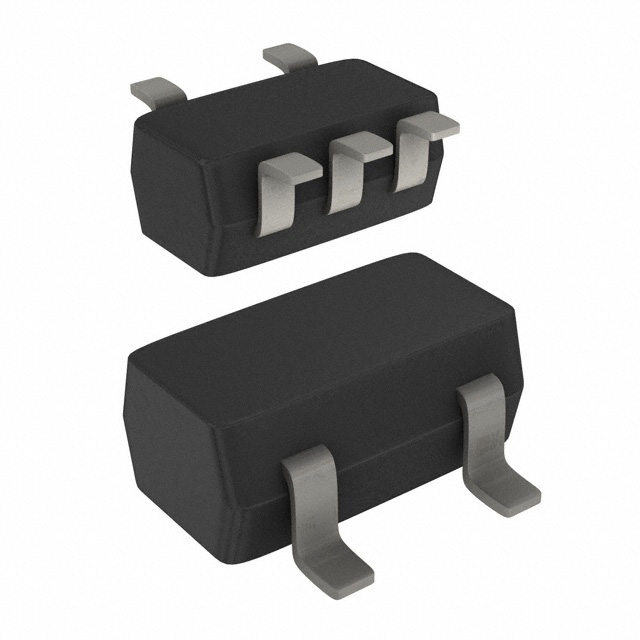

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UMG7NTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UMG7NTR
Manufacturer	LAPIS Semiconductor
Description	TRANS 2NPN PREBIAS 0.15W UMT5
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 700500 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.034

Product parameter
Data sheet

Product parameter

Part Number	UMG7NTR	Manufacturer	LAPIS Semiconductor
Description	TRANS 2NPN PREBIAS 0.15W UMT5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	700500 pcs	Data sheet	UMG7NTR
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	300mV @ 1mA, 10mA	Transistor Type	2 NPN - Pre-Biased (Dual)
Supplier Device Package	UMT5	Series	-
Resistor - Emitter Base (R2)	-	Resistor - Base (R1)	10 kOhms
Power - Max	150mW	Packaging	Tape & Reel (TR)
Package / Case	5-TSSOP, SC-70-5, SOT-353	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	250MHz	Detailed Description	Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 250MHz 150mW Surface Mount UMT5
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1mA, 5V	Current - Collector Cutoff (Max)	500nA (ICBO)
Current - Collector (Ic) (Max)	100mA
