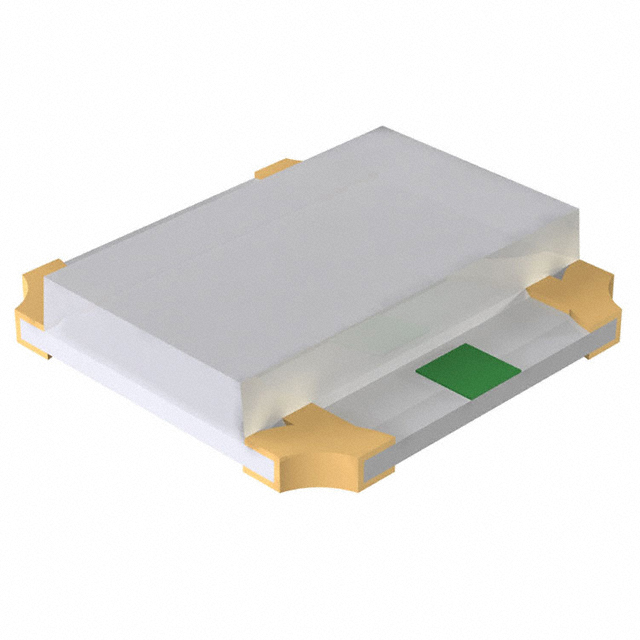

SML-P24MUWT86
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SML-P24MUWT86 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SML-P24MUWT86 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SML-P24MUWT86 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | LED GRN/RED DIFFUSED PICOLED SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.188 | $0.147 | $0.122 | $0.105 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.094 | $0.081 | $0.062 | $0.056 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SML-P24MUWT86 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED GRN/RED DIFFUSED PICOLED SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 371029 pcs | Data sheet | SML-P24 Series |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | 572nm Green, 620nm Red | Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Red |
| Viewing Angle | - | Supplier Device Package | PICOLED |
| Size / Dimension | 1.00mm L x 1.00mm W | Series | PicoLED™ |
| Packaging | Cut Tape (CT) | Package / Case | 0404 (1010 Metric) |
| Other Names | 846-1040-1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Millicandela Rating | 21mcd Green, 52mcd Red |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top, 1.00mm x 0.60mm |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.25mm | Features | - |
| Detailed Description | Green, Red 572nm Green, 620nm Red LED Indication - Discrete 2.2V Green, 2.1V Red 0404 (1010 Metric) | Current - Test | 20mA Green, 20mA Red |
| Configuration | Independent | Color | Green, Red |
| Base Part Number | SML-P24 |
