Home > Products > Optoelectronics > LED Indication - Discrete > SML-P12YTT86RR

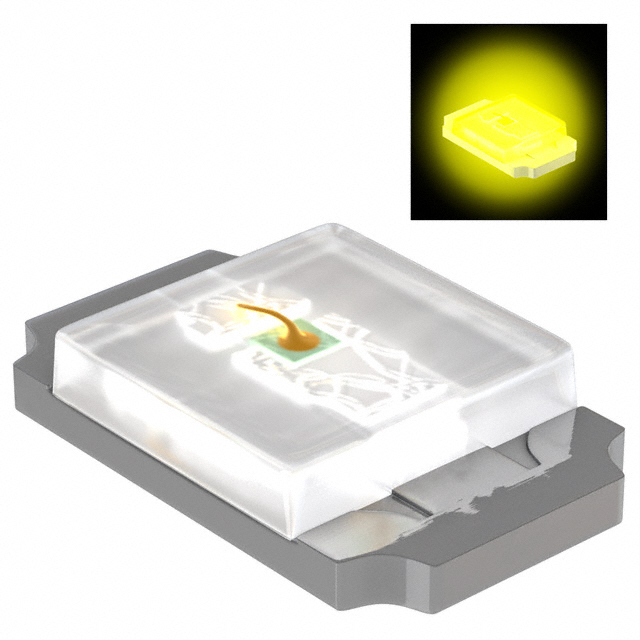

SML-P12YTT86RR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SML-P12YTT86RR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SML-P12YTT86RR
Manufacturer	LAPIS Semiconductor
Description	LED YELLOW CLEAR 1006 SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 732296 pcs
Reference Price (In US Dollars)	5000 pcs	10000 pcs
Reference Price (In US Dollars)	$0.033	$0.031

Product parameter
Data sheet

Product parameter

Part Number	SML-P12YTT86RR	Manufacturer	LAPIS Semiconductor
Description	LED YELLOW CLEAR 1006 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	732296 pcs	Data sheet	SML-P12x,P13x LED Manual
Category	Optoelectronics	Wavelength - Peak	-
Wavelength - Dominant	590nm	Voltage - Forward (Vf) (Typ)	2.1V
Viewing Angle	-	Supplier Device Package	1006 (0402)
Size / Dimension	1.00mm L x 0.60mm W	Series	PicoLED™
Packaging	Tape & Reel (TR)	Package / Case	0402 (1006 Metric)
Other Names	846-1204-2 SML-P12YTT86RP2 SML-P12YTT86RQ SML-P12YTT86RQ (Q-S) SML-P12YTT86RQ1 SML-P12YTT86RQ2 SML-P12YTT86RR1 SML-P12YTT86RS	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	4 (72 Hours)	Millicandela Rating	100mcd
Manufacturer Standard Lead Time	10 Weeks	Lens Transparency	Clear
Lens Style/Size	Square with Flat Top, 0.60mm	Lens Color	Colorless
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	0.25mm
Features	-	Detailed Description	Yellow 590nm LED Indication - Discrete 2.1V 0402 (1006 Metric)
Current - Test	20mA	Configuration	Standard
Color	Yellow
