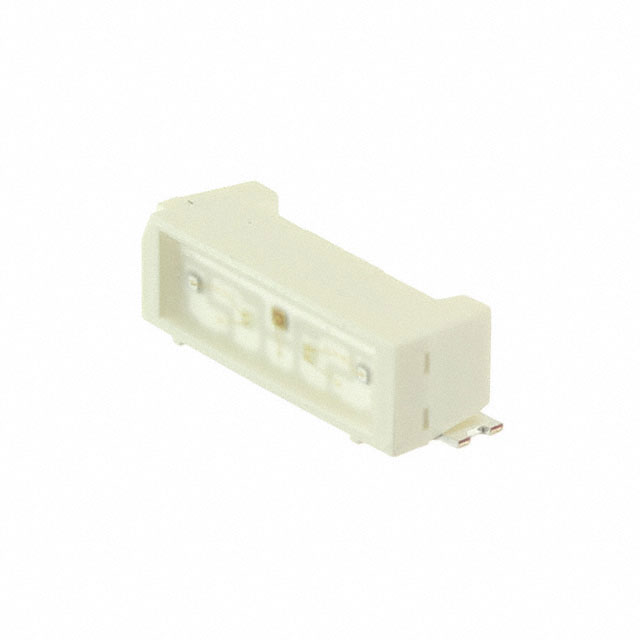

MSL0101RGBU1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MSL0101RGBU1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MSL0101RGBU1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MSL0101RGBU1 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | LED RGB DIFFUSED 2709 SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.353 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MSL0101RGBU1 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED RGB DIFFUSED 2709 SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57500 pcs | Data sheet | MSL0101 Series |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue | Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.2V Blue |
| Viewing Angle | - | Supplier Device Package | 2709 (6922 Metric) |
| Size / Dimension | 6.90mm L x 2.20mm W | Series | MSL0101 |
| Packaging | Tape & Reel (TR) | Package / Case | 7-SMD, Flat Lead |
| Other Names | 846-1189-2 MSL0101RGBU1-ND MSL0101RGBU11Y MSL0101RGBU12Y MSL0101RGBU13Y MSL0101RGBU15Y MSL0101RGBU16Y MSL0101RGBU17Y MSL0101RGBU18Y |
Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Millicandela Rating | 700mcd Red, 1200mcd Green, 400mcd Blue |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top, 5.40mm x 1.60mm |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 2.15mm | Features | - |
| Detailed Description | Red, Green, Blue (RGB) 624nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.3V Green, 3.2V Blue 7-SMD, Flat Lead | Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Configuration | Common Cathode | Color | Red, Green, Blue (RGB) |
| Base Part Number | MSL0101 |
