MSL1064AW

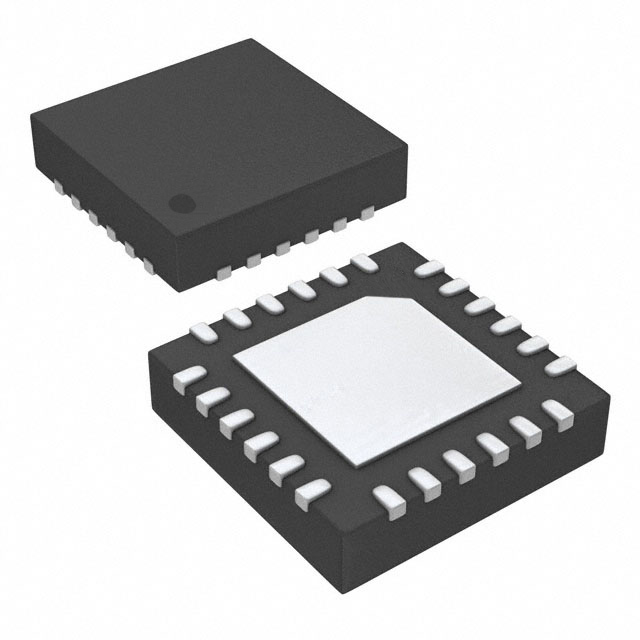

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MSL1064AW with confidence from Components-World.HK, 1 Year Warranty
Dowload MSL1064AW Details in PDFSee Product Specifications for product details.
Buy MSL1064AW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MSL1064AW |
|---|---|
| Manufacturer | Micrel / Microchip Technology |
| Description | IC LED DRIVER RGLTR DIM 24TQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.511 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MSL1064AW | Manufacturer | Micrel / Microchip Technology |
|---|---|---|---|
| Description | IC LED DRIVER RGLTR DIM 24TQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25310 pcs | Data sheet | MSL1061/64 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 36V | Voltage - Output | 48V |
| Type | DC DC Regulator | Topology | Step-Up (Boost) |
| Supplier Device Package | 24-TQFN (5x5) | Series | - |
| Packaging | Tray | Package / Case | 24-WQFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency | 1.1MHz | Dimming | Analog, PWM |
| Detailed Description | LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 30mA 24-TQFN (5x5) | Current - Output / Channel | 30mA |
| Base Part Number | MSL1064 | Applications | Backlight |
