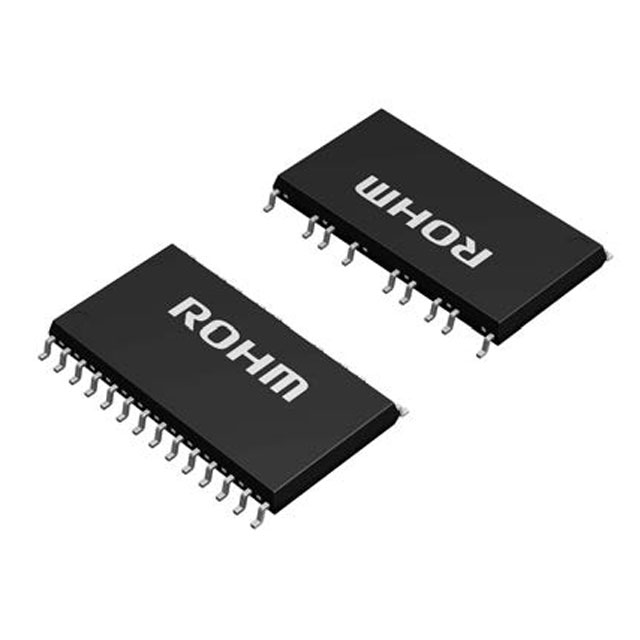

BM6203FS-E2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM6203FS-E2 with confidence from Components-World.HK, 1 Year Warranty
Dowload BM6203FS-E2 Details in PDFSee Product Specifications for product details.
Buy BM6203FS-E2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM6203FS-E2 |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | IC MOTOR DVR 3PH BRUSHLSS 54SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $4.312 | $3.879 | $3.534 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.189 | $2.931 | $2.672 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM6203FS-E2 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DVR 3PH BRUSHLSS 54SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12479 pcs | Data sheet | BM6203FSSSOP-A54 23 Taping Spec |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 400V (Max) | Technology | Power MOSFET |
| Supplier Device Package | SSOP-A54_23 | Series | - |
| Rds On (Typ) | 1.7 Ohm | Packaging | Original-Reel® |
| Package / Case | 54-SOP (0.449", 11.40mm Width), 23 Leads | Output Configuration | Half Bridge (3) |
| Other Names | BM6203FS-E2DKR | Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic | Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, UVLO | Detailed Description | Half Bridge (3) Driver AC Motors Power MOSFET SSOP-A54_23 |
| Current - Peak Output | 4A | Current - Output / Channel | 2.5A |
| Applications | AC Motors |
