Home > Products > Integrated Circuits (ICs) > PMIC - Full, Half-Bridge Drivers > BM6202FS-E2

BM6202FS-E2

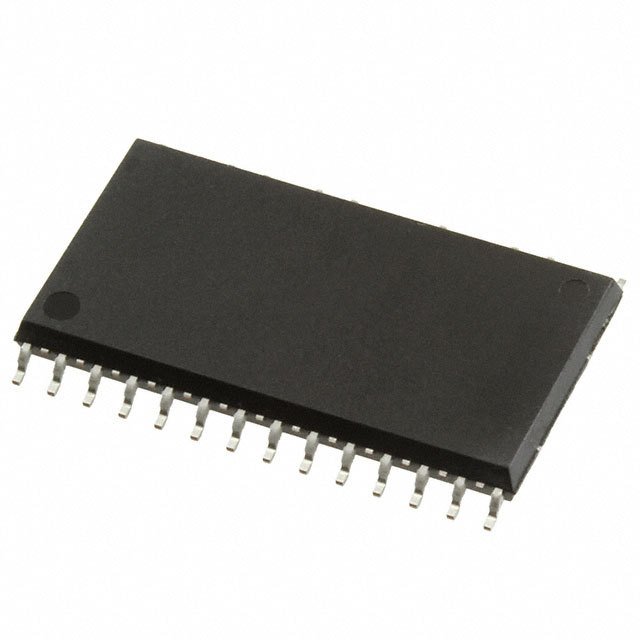

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM6202FS-E2 with confidence from Components-World.HK, 1 Year Warranty

Dowload BM6202FS-E2 Details in PDF

Request a Quote

Part Number	BM6202FS-E2
Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DVR 3PH BRUSHLSS 23SSOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 19217 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.583

Product parameter
Data sheet

Product parameter

Part Number	BM6202FS-E2	Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DVR 3PH BRUSHLSS 23SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19217 pcs	Data sheet	BM6202FS SSOP-A54 23 Taping Spec
Category	Integrated Circuits (ICs)	Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	400V (Max)	Technology	Power MOSFET
Supplier Device Package	23-SSOP	Series	-
Rds On (Typ)	2.7 Ohm	Packaging	Tape & Reel (TR)
Package / Case	28-SOP (0.449", 11.40mm Width), 23 Leads	Output Configuration	Half Bridge (3)
Other Names	BM6202FS-E2TR	Operating Temperature	-20°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	17 Weeks	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Logic
Features	Bootstrap Circuit, Status Flag	Fault Protection	Current Limiting, Over Temperature, UVLO
Detailed Description	Half Bridge (3) Driver AC Motors Power MOSFET 23-SSOP	Current - Peak Output	2.5A
Current - Output / Channel	1.5A	Applications	AC Motors
