Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > 2SC4620TV2P

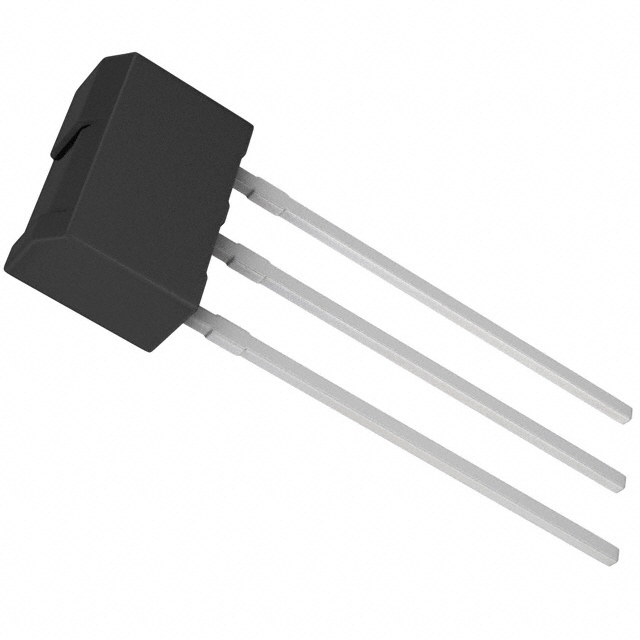

2SC4620TV2P

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC4620TV2P with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2SC4620TV2P
Manufacturer	LAPIS Semiconductor
Description	TRANS NPN 400V 0.1A ATV
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5889 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	2SC4620TV2P	Manufacturer	LAPIS Semiconductor
Description	TRANS NPN 400V 0.1A ATV	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5889 pcs	Data sheet	2SA1759, 2SC4505/4620
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	400V
Vce Saturation (Max) @ Ib, Ic	500mV @ 1mA, 10mA	Transistor Type	NPN
Supplier Device Package	ATV	Series	-
Power - Max	1W	Packaging	Tape & Reel (TR)
Package / Case	3-SIP	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	20MHz
Detailed Description	Bipolar (BJT) Transistor NPN 400V 100mA 20MHz 1W Through Hole ATV	DC Current Gain (hFE) (Min) @ Ic, Vce	82 @ 10mA, 10V
Current - Collector Cutoff (Max)	10µA (ICBO)	Current - Collector (Ic) (Max)	100mA
