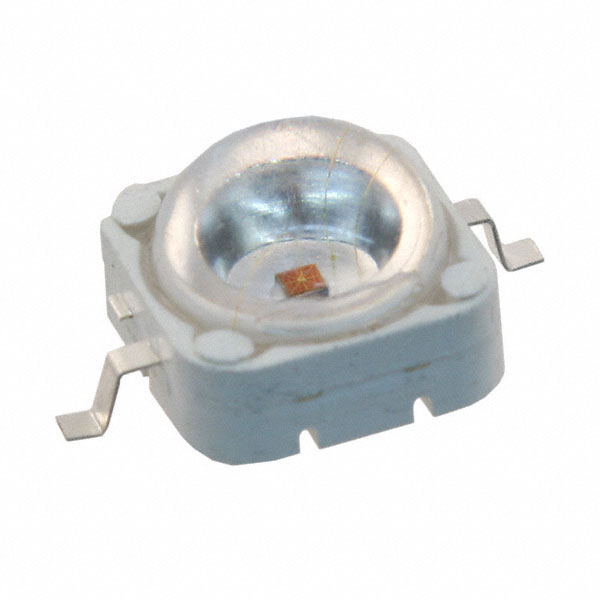

AAD1-9090SE28ZC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AAD1-9090SE28ZC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AAD1-9090SE28ZC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AAD1-9090SE28ZC |
|---|---|
| Manufacturer | Kingbright |
| Description | LED 1W HIGH POWER RED SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.47 | $1.224 | $1.028 | $0.881 | $0.783 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AAD1-9090SE28ZC | Manufacturer | Kingbright |
|---|---|---|---|
| Description | LED 1W HIGH POWER RED SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47162 pcs | Data sheet | AAD1-9090SE28ZC |
| Category | Optoelectronics | Wavelength | 625nm (Typ) |
| Voltage - Forward (Vf) (Typ) | 2.5V | Viewing Angle | 100° |
| Thermal Resistance of Package | 12°C/W | Temperature - Test | 25°C |
| Supplier Device Package | - | Size / Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
| Series | AAD1-9090 | Packaging | Cut Tape (CT) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad | Other Names | 754-1315-1 AAD19090SE28ZC |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| Lumens/Watt @ Current - Test | 40 lm/W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.267" (6.78mm) | Flux @ Current/Temperature - Test | 35 lm (Typ) |
| Detailed Description | LED Lighting Color AAD1-9090 Red 625nm (Typ) 2-SMD, Gull Wing Exposed Pad | Current - Test | 350mA |
| Current - Max | 350mA | Color | Red |
