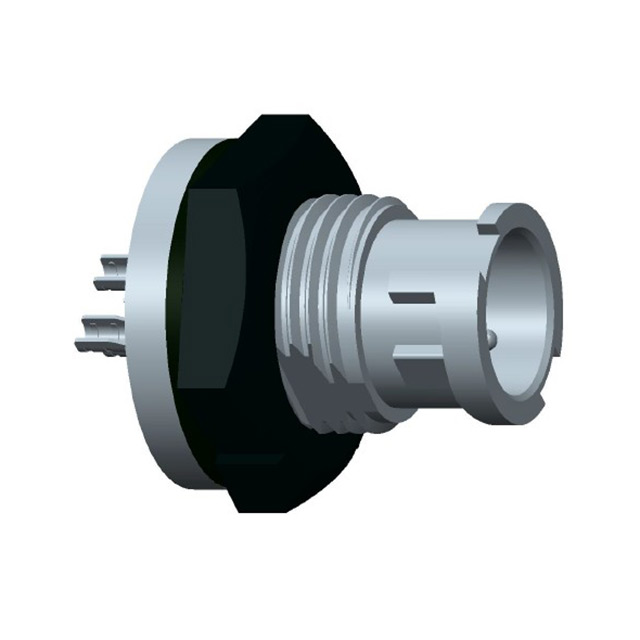

AAD-03PMMS-LC7001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AAD-03PMMS-LC7001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AAD-03PMMS-LC7001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AAD-03PMMS-LC7001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN RCPT MALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.482 | $1.422 | $1.304 | $1.245 | $1.185 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.037 | $1.007 | $0.859 | $0.80 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AAD-03PMMS-LC7001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN RCPT MALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43553 pcs | Data sheet | AAD-03PMMS-LC7001 Drawing |
| Category | Connectors, Interconnects | Termination | Solder Cup |
| Shell Size, MIL | - | Shell Size - Insert | A |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | MINI | Packaging | Tray |
| Other Names | 1754-1070 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 3 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 5A |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
