8209
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8209 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8209 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8209 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |

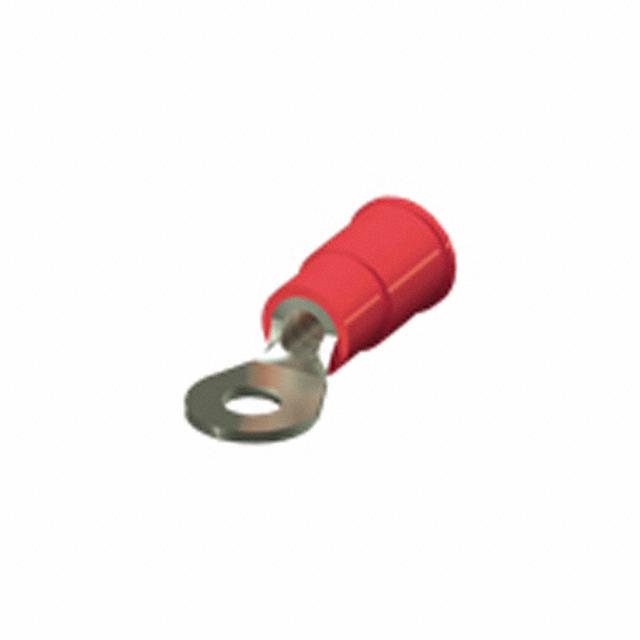

| Description | CONN RING CIRC 18-22AWG #6 CRIMP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.169 | $0.154 | $0.112 | $0.108 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.097 | $0.077 | $0.07 | $0.066 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8209 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #6 CRIMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 297969 pcs | Data sheet | 8209 DrawingSolderless Terminals |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.250" (6.35mm) | Thickness | 0.030" (0.76mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 6 Stud | Series | - |
| Packaging | Bulk | Other Names | 36-8209 8209K 8209K-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Vinyl | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.800" (20.32mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | - | Detailed Description | Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp |
| Contact Material | Copper, ETP | Contact Finish | Tin |
| Color | Red |
