8209-7000

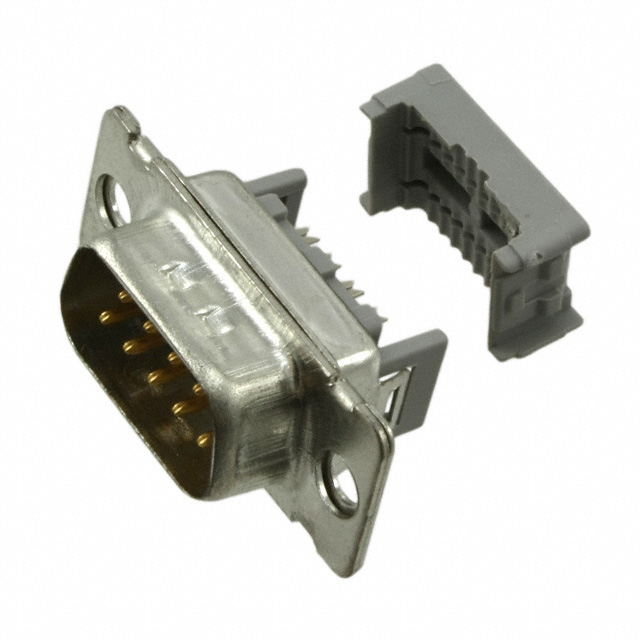

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8209-7000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8209-7000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8209-7000 |
|---|---|
| Manufacturer | 3M |
| Description | CONN D-SUB PLUG 9POS PNL MNT IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.64 | $2.531 | $2.311 | $2.201 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.091 | $1.871 | $1.761 | $1.541 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8209-7000 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25497 pcs | Data sheet | Interconnect Catalog8200 Series D Sub Plug Connector |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | 8200 | Packaging | Bulk |
| Other Names | 05111165731 3M15411 5111165731 51111657317 7010291963 80610185714 8209-7000-ND 82097000 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Gray | Backset Spacing | - |
