5015

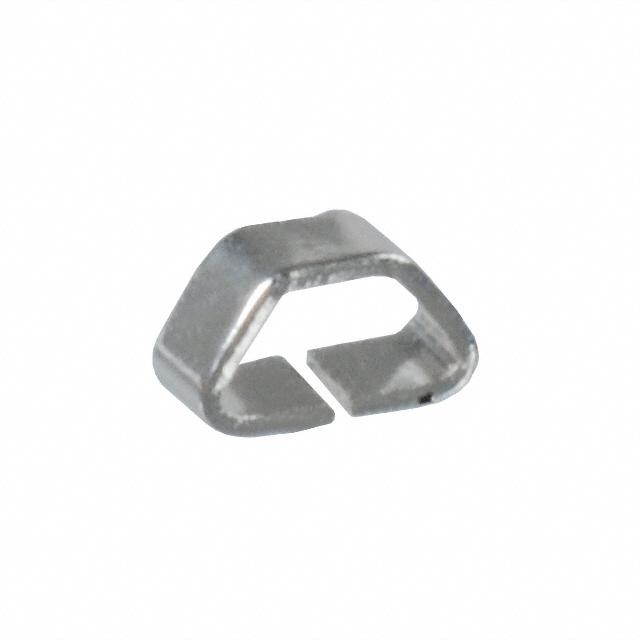

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5015 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5015 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5015 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | PC TEST POINT MINIATURE SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.161 | $0.154 | $0.132 | $0.112 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.108 | $0.097 | $0.092 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5015 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | PC TEST POINT MINIATURE SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 225428 pcs | Data sheet | SMT Test Points Datasheet5015 Drawing |
| Category | Test and Measurement | Type | PC Test Point, Miniature |
| Size / Dimension | 0.105" L x 0.040" W (2.67mm x 1.02mm) | Series | - |
| Plating | Silver | Packaging | Original-Reel® |
| Other Names | 36-5015DKR 5015KDKR 5015KDKR-ND |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | No Insulation |
| Material - Body | Phosphor Bronze | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.060" (1.52mm) |
| Detailed Description | PC Test Point, Miniature Phosphor Bronze, Silver Plating Surface Mount Mounting Type | Color | - |
