501503B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501503B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501503B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501503B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |

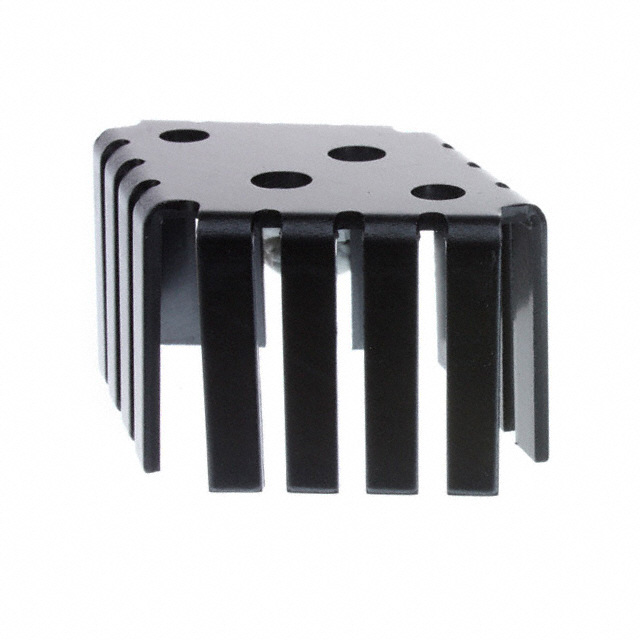

| Description | HEATSINK TO-3 1.00" BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.456 | $0.434 | $0.422 | $0.411 | $0.388 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.365 | $0.343 | $0.32 | $0.308 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501503B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-3 1.00" BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76096 pcs | Data sheet | Standard Heatsinks Catalog501x03B00000G Datasheet |
| Category | Fans, Thermal Management | Width | 1.400" (35.56mm) |
| Type | Board Level | Thermal Resistance @ Natural | 8.40°C/W |
| Thermal Resistance @ Forced Air Flow | 2.00°C/W @ 500 LFM | Shape | Rhombus |
| Series | - | Power Dissipation @ Temperature Rise | 5.0W @ 40°C |
| Package Cooled | TO-3 | Other Names | 001161 501503B00000 6015B HS248 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.880" (47.75mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 5.0W @ 40°C Board Level | Attachment Method | Bolt On |
