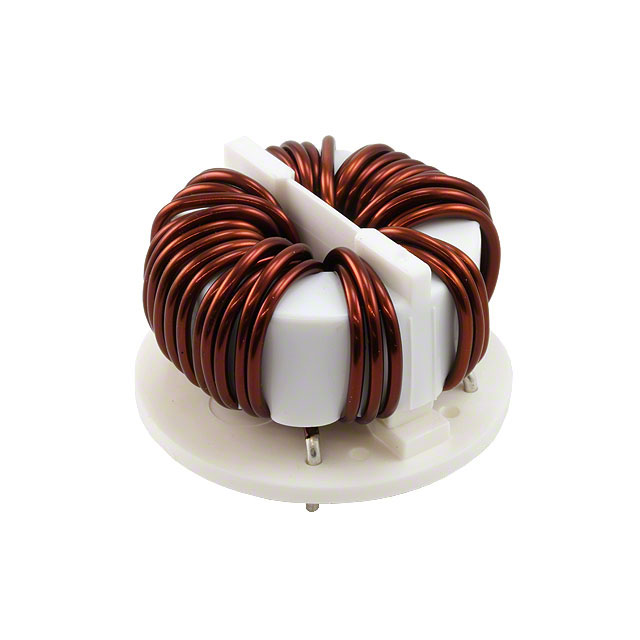

SC-15-20JH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC-15-20JH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SC-15-20JH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC-15-20JH |
|---|---|
| Manufacturer | KEMET |
| Description | COMMON MODE CHOKE 2MH 15A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.721 | $1.395 | $1.128 | $1.057 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.009 | $0.98 | $0.95 | $0.92 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC-15-20JH | Manufacturer | KEMET |
|---|---|---|---|
| Description | COMMON MODE CHOKE 2MH 15A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41663 pcs | Data sheet | SC-JH Series |
| Category | Filters | Voltage Rating - DC | 250V |
| Voltage Rating - AC | 250V | Size / Dimension | 2.008" Dia (51.00mm) |
| Series | SC | Ratings | - |
| Packaging | Bulk | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 399-10662 | Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 2mH @ 100kHz |
| Height (Max) | 1.339" (34.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2mH @ 100kHz 2 Line Common Mode Choke Through Hole 15A DCR 12 mOhm |
| DC Resistance (DCR) (Max) | 12 mOhm | Current Rating (Max) | 15A |
| Approvals | - |
