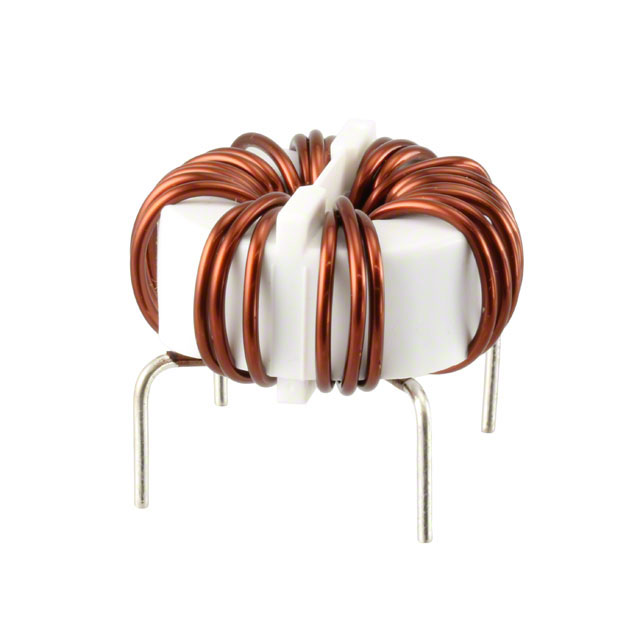

SC-15-100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC-15-100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SC-15-100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC-15-100 |
|---|---|
| Manufacturer | KEMET |
| Description | COMMON MODE CHOKE 1MH 15A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.474 | $1.195 | $0.966 | $0.905 | $0.865 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.839 | $0.814 | $0.788 | $0.725 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC-15-100 | Manufacturer | KEMET |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1MH 15A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50834 pcs | Data sheet | SC, Standard Type |
| Category | Filters | Voltage Rating - DC | 250V |
| Voltage Rating - AC | 250V | Size / Dimension | 1.929" Dia (49.00mm) |
| Series | SC | Ratings | - |
| Packaging | Bulk | Package / Case | Horizontal, No Base, 4 PC Pin |
| Other Names | 399-10616 | Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 1mH @ 100kHz |
| Height (Max) | 1.063" (27.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 15A DCR 12 mOhm |
| DC Resistance (DCR) (Max) | 12 mOhm | Current Rating (Max) | 15A |
| Approvals | - |
