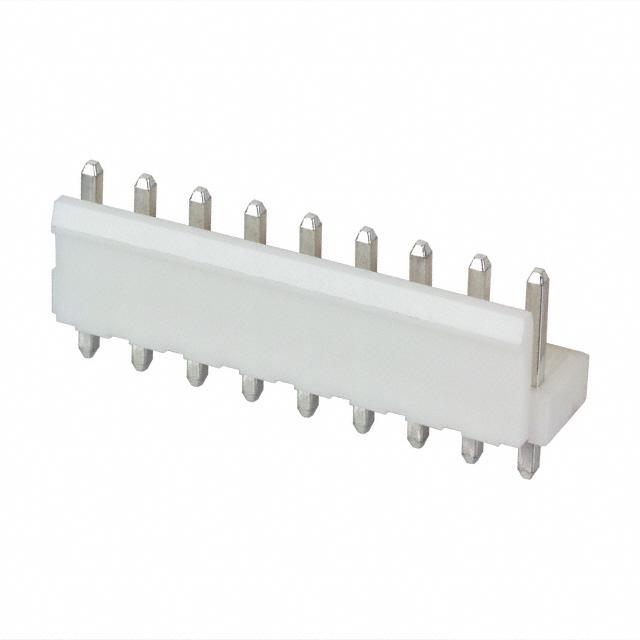

B9P-VH(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B9P-VH(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B9P-VH(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B9P-VH(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER VH TOP 9POS 3.96MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.19 | $0.179 | $0.137 | $0.119 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.098 | $0.087 | $0.081 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B9P-VH(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER VH TOP 9POS 3.96MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 266625 pcs | Data sheet | VH Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | VH |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.575" (14.60mm) |
| Other Names | 455-1646 B9PVHLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 16.5mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.370" (9.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 9 position 0.156" (3.96mm) |
| Current Rating | 10A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.303" (7.70mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
