FTSH-115-04-S-DH-A

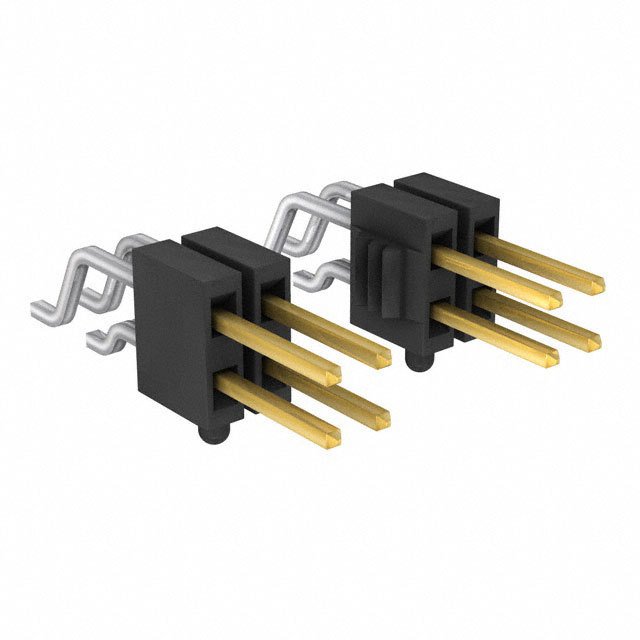

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTSH-115-04-S-DH-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTSH-115-04-S-DH-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTSH-115-04-S-DH-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050'' X .050 TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 125 pcs | ||||
|---|---|---|---|---|---|
| $1.987 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FTSH-115-04-S-DH-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050'' X .050 TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19851 pcs | Data sheet | FTSH TH Series DatasheetFTSH-1yy-yy-yyy-DH-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTSH |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.135" (3.43mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 30 position 0.050" (1.27mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
