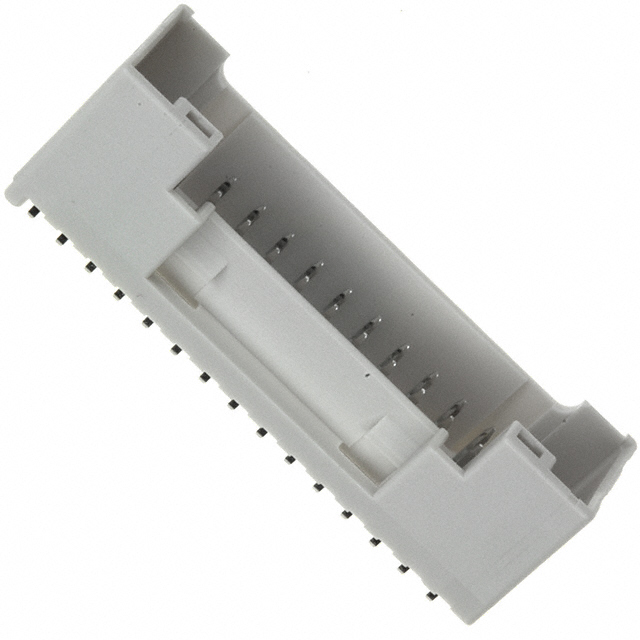

B30B-PUDSS-1(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B30B-PUDSS-1(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B30B-PUDSS-1(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B30B-PUDSS-1(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HDR TOP 30 POS W/BOSS 2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 990 pcs | |
|---|---|---|---|---|---|
| $0.421 | $0.369 | $0.318 | $0.253 | ||
| 1980 pcs | 5940 pcs | 10890 pcs | |||
| $0.217 | $0.203 | $0.192 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B30B-PUDSS-1(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR TOP 30 POS W/BOSS 2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103408 pcs | Data sheet | PUD Connector |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PUD |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-2510 B(30)B-PUDSS-1(LF)(SN) B30BPUDSS1LFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.378" (9.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 30 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
