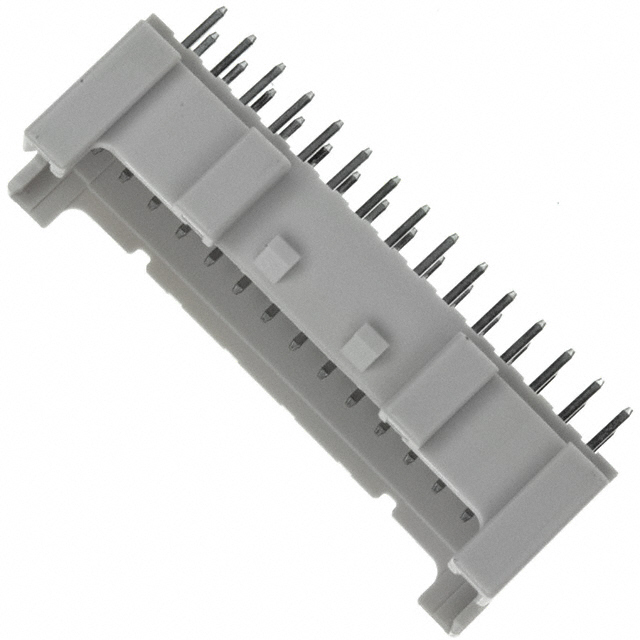

B30B-PNDZS-1 (T) (LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B30B-PNDZS-1 (T) (LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B30B-PNDZS-1 (T) (LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B30B-PNDZS-1 (T) (LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADR PND TOP 30POS 2MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 224 pcs | 672 pcs | |
|---|---|---|---|---|---|
| $0.382 | $0.335 | $0.289 | $0.237 | ||
| 1120 pcs | 5152 pcs | 10080 pcs | |||
| $0.21 | $0.184 | $0.175 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B30B-PNDZS-1 (T) (LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADR PND TOP 30POS 2MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 115368 pcs | Data sheet | PND Connector |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PND |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 455-2333 B30B-PNDZS-1T(LF)(SN) B30BPNDZS1TLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 12.9mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Ivory |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 30 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
