Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > B22B-PADSS-1(LF)(SN)

B22B-PADSS-1(LF)(SN)

B22B-PADSS-1(LF)(SN)

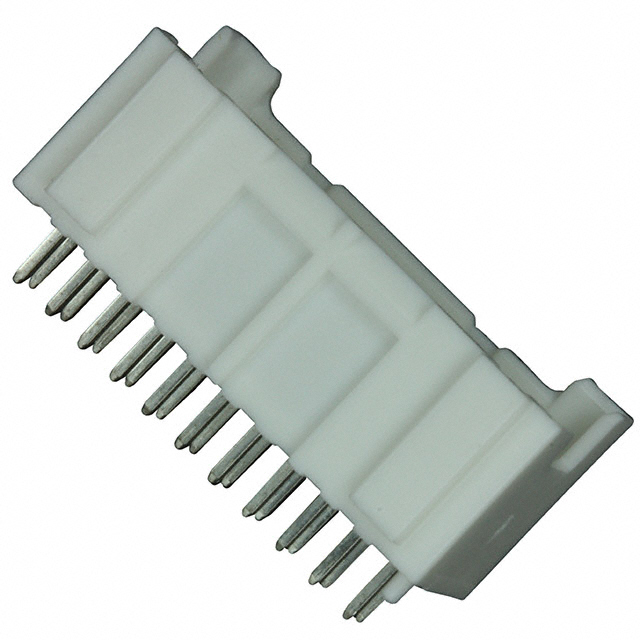

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B22B-PADSS-1(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number B22B-PADSS-1(LF)(SN)
Manufacturer JST
Description CONN HEADER 22POS 2MM TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 134733 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.386$0.341$0.294$0.24
1000 pcs5000 pcs10000 pcs
$0.214$0.187$0.178

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.386

Product parameter

Part Number B22B-PADSS-1(LF)(SN) Manufacturer JST
Description CONN HEADER 22POS 2MM TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 134733 pcs Data sheet PAD Series Datasheet
Category Connectors, Interconnects Voltage Rating 250V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series PAD
Row Spacing - Mating 0.079" (2.00mm) Pitch - Mating 0.079" (2.00mm)
Packaging Bulk Overall Contact Length -
Other Names 455-2016
B22BPADSS1LFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 22 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights 12.4mm Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height 0.402" (10.20mm) Insulation Color Natural
Ingress Protection - Features Board Guide
Fastening Type Locking Ramp Detailed Description Connector Header Through Hole 22 position 0.079" (2.00mm)
Current Rating 3A Contact Type Male Pin
Contact Shape Square Contact Material Copper Alloy
Contact Length - Post 0.134" (3.40mm) Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
