Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > B15B-XH-A(LF)(SN)

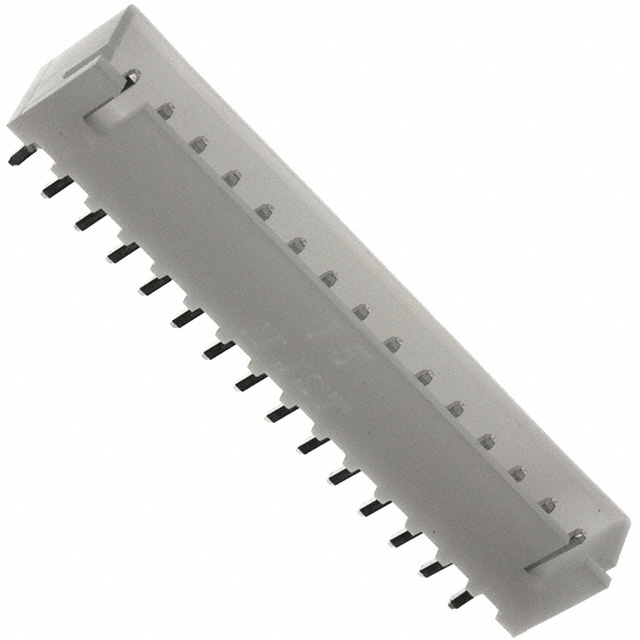

B15B-XH-A(LF)(SN)

B15B-XH-A(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B15B-XH-A(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number B15B-XH-A(LF)(SN)
Manufacturer JST
Description CONN HEADER XH TOP 15POS 2.5MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 210056 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.224$0.212$0.162$0.141
1000 pcs5000 pcs10000 pcs
$0.116$0.102$0.095

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.224

Product parameter

Part Number B15B-XH-A(LF)(SN) Manufacturer JST
Description CONN HEADER XH TOP 15POS 2.5MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 210056 pcs Data sheet XH Series Datasheet
Category Connectors, Interconnects Voltage Rating 250V
Termination Press-Fit, Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series XH
Row Spacing - Mating - Pitch - Mating 0.098" (2.50mm)
Packaging Bulk Overall Contact Length -
Other Names 455-2254
B15B-XH-A (LF)(SN)(P);
B15B-XH-A (LF)(SN)(P)
B15BXHALFSNP		 Operating Temperature -25°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 15 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights 9.8mm Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.276" (7.00mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Detent Lock Detailed Description Connector Header Through Hole 15 position 0.098" (2.50mm)
Current Rating 3A Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.134" (3.40mm) Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
