Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > B15B-PH-K-S(LF)(SN)

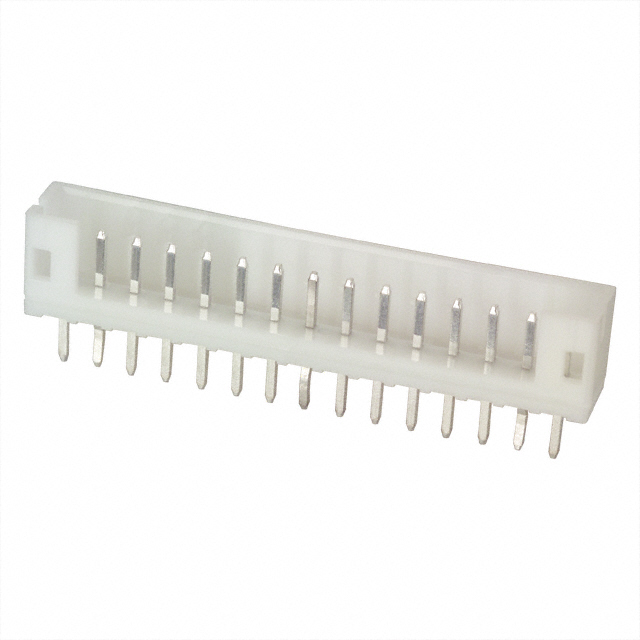

B15B-PH-K-S(LF)(SN)

B15B-PH-K-S(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B15B-PH-K-S(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number B15B-PH-K-S(LF)(SN)
Manufacturer JST
Description CONN HEADER PH TOP 15POS 2MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 200571 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.241$0.227$0.174$0.151
1000 pcs5000 pcs10000 pcs
$0.125$0.11$0.102

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.241

Product parameter

Part Number B15B-PH-K-S(LF)(SN) Manufacturer JST
Description CONN HEADER PH TOP 15POS 2MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 200571 pcs Data sheet PH Series Datasheet
Category Connectors, Interconnects Voltage Rating 100V
Termination Press-Fit, Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series PH
Row Spacing - Mating - Pitch - Mating 0.079" (2.00mm)
Packaging Bulk Overall Contact Length 0.333" (8.45mm)
Other Names 455-1717
B15BPHKSLFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 15 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights 8mm Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.236" (6.00mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Detent Lock Detailed Description Connector Header Through Hole 15 position 0.079" (2.00mm)
Current Rating 2A Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.134" (3.40mm) Contact Length - Mating 0.130" (3.30mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
