Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Receptacles, Fem > 22R-JED(LF)(SN)

22R-JED(LF)(SN)

22R-JED(LF)(SN)

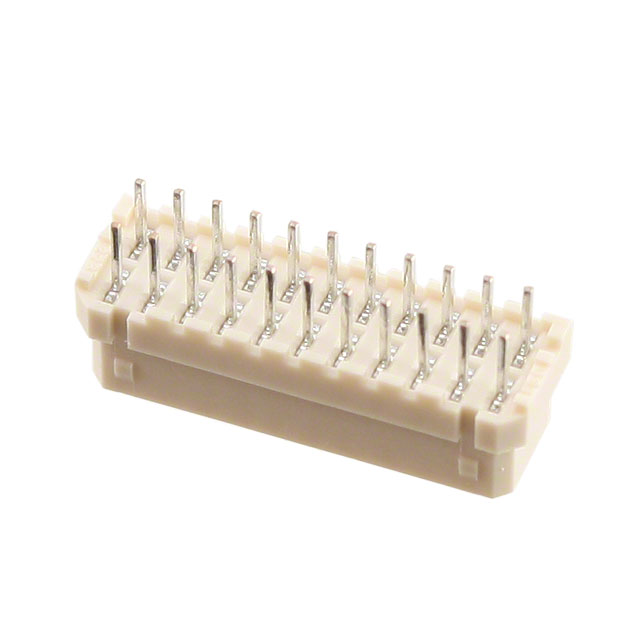

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22R-JED(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 22R-JED(LF)(SN)
Manufacturer JST
Description CONN RECEPT 22POS
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 117245 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.447$0.394$0.339$0.278
1000 pcs5000 pcs10000 pcs
$0.247$0.216$0.205

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.447

Product parameter

Part Number 22R-JED(LF)(SN) Manufacturer JST
Description CONN RECEPT 22POS Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 117245 pcs Data sheet JED Series Datasheet
Category Connectors, Interconnects Voltage Rating 50V
Termination Solder Style Board to Board
Series JED Row Spacing - Mating 0.079" (2.00mm)
Pitch - Mating 0.049" (1.25mm) Packaging Bulk
Other Names 22R-JED(LF)(SN)-ND
455-2940
Q4490391
T0873783		 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 22 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height 0.173" (4.40mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Friction Lock Detailed Description 22 Position Receptacle Connector 0.049" (1.25mm) Through Hole Tin
Current Rating 1A Contact Type Female Socket
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post 0.079" (2.00mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating - Contact Finish - Post -
Contact Finish - Mating Tin Connector Type Receptacle
Applications -
