22R223C

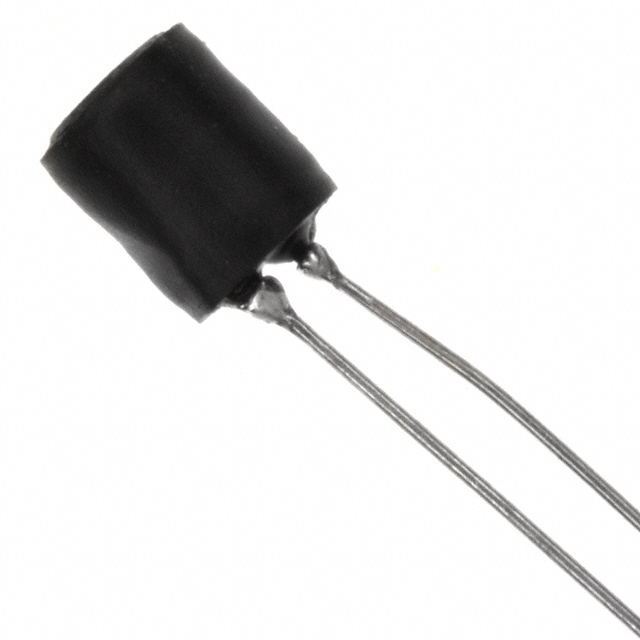

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22R223C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22R223C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22R223C |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | FIXED IND 22UH 1.08A 90 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.21 | $0.207 | $0.20 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.193 | $0.178 | $0.166 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22R223C | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | FIXED IND 22UH 1.08A 90 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 139769 pcs | Data sheet | 2200R Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) | Shielding | Unshielded |
| Series | 2200R | Ratings | - |
| Q @ Freq | 50 @ 500kHz | Packaging | Bulk |
| Package / Case | Radial | Other Names | 811-1301 |
| Operating Temperature | -25°C ~ 70°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 22µH |
| Height - Seated (Max) | 0.413" (10.50mm) | Frequency - Self Resonant | 17MHz |
| Detailed Description | 22µH Unshielded Wirewound Inductor 1.08A 90 mOhm Max Radial | DC Resistance (DCR) | 90 mOhm Max |
| Current Rating | 1.08A | Current - Saturation | - |
