22PS-JED
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22PS-JED with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22PS-JED with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22PS-JED |
|---|---|
| Manufacturer | JST |

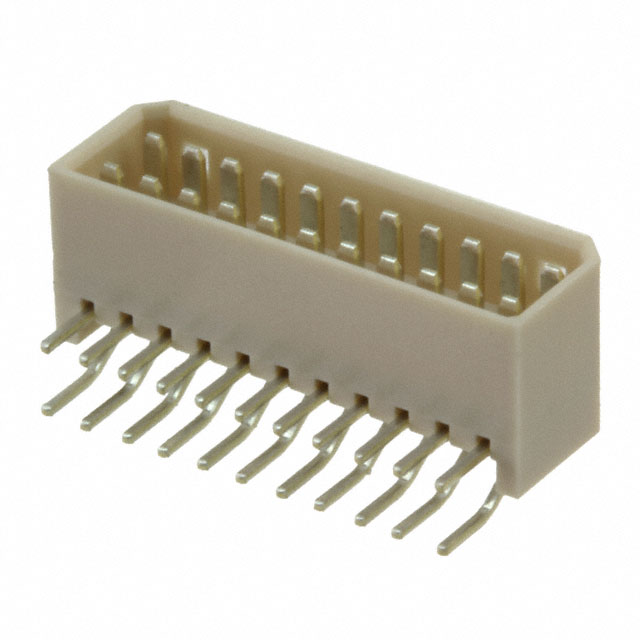

| Description | CONN 22 POS 1.25MM RA THRU-HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.428 | $0.377 | $0.326 | $0.266 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.237 | $0.207 | $0.197 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22PS-JED | Manufacturer | JST |
|---|---|---|---|
| Description | CONN 22 POS 1.25MM RA THRU-HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99779 pcs | Data sheet | JED Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | JED |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 22PS-JED(LF)(SN) 22PS-JED(LF)(SN)-ND 22PS-JED-ND 455-2939 Q4490521A T0873767 |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 22 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.079" (2.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
