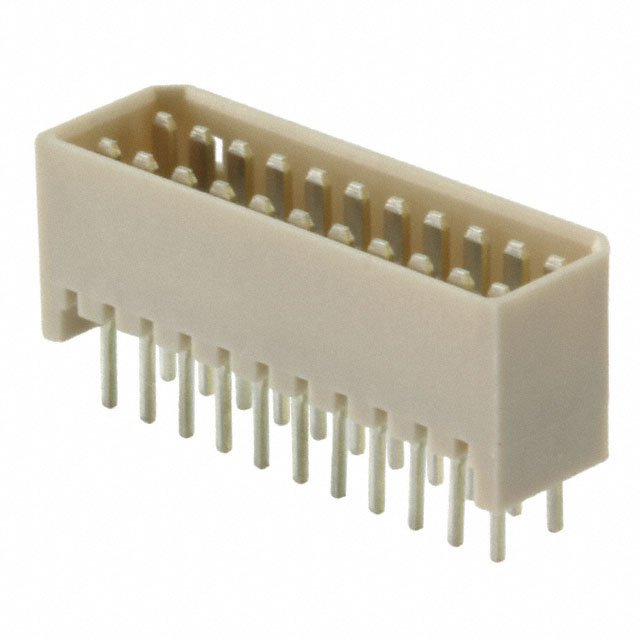

22P-JED
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22P-JED with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22P-JED with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22P-JED |
|---|---|
| Manufacturer | JST |
| Description | CONN PL 22 POS 1.25MM THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.419 | $0.368 | $0.318 | $0.26 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.231 | $0.202 | $0.192 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22P-JED | Manufacturer | JST |
|---|---|---|---|
| Description | CONN PL 22 POS 1.25MM THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109536 pcs | Data sheet | JED Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | JED |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 22P-JED(LF)(SN) 22P-JED(LF)(SN)-ND 22P-JED-ND 455-2938 Q4490521 |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.209" (5.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 22 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.079" (2.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
