08FMN-BMT-A-TF(LF)(SN)

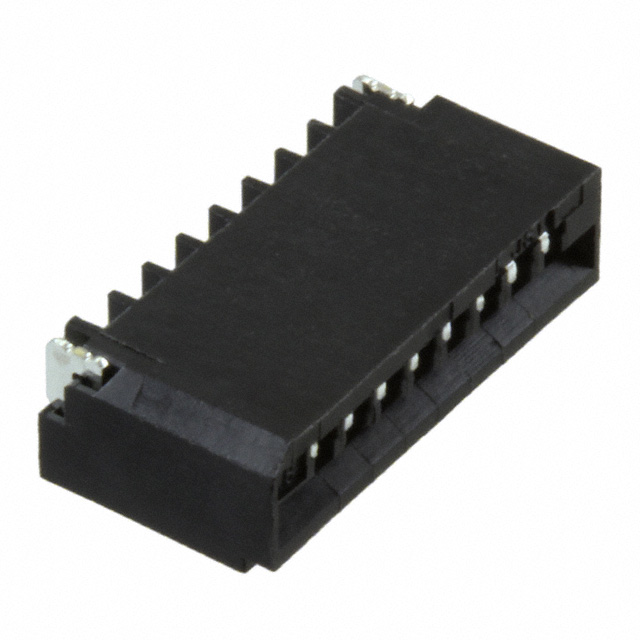

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 08FMN-BMT-A-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 08FMN-BMT-A-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 08FMN-BMT-A-TF(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN FFC VERT 8POS 1.00MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.11 | $0.107 | $0.10 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.097 | $0.09 | $0.087 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 08FMN-BMT-A-TF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN FFC VERT 8POS 1.00MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 262056 pcs | Data sheet | FMN Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FMN |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 08FMNBMTATFLFSN 455-1925-2 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 24 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T | Housing Color | Black |
| Height Above Board | 0.201" (5.10mm) | Flat Flex Type | FFC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FFC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
