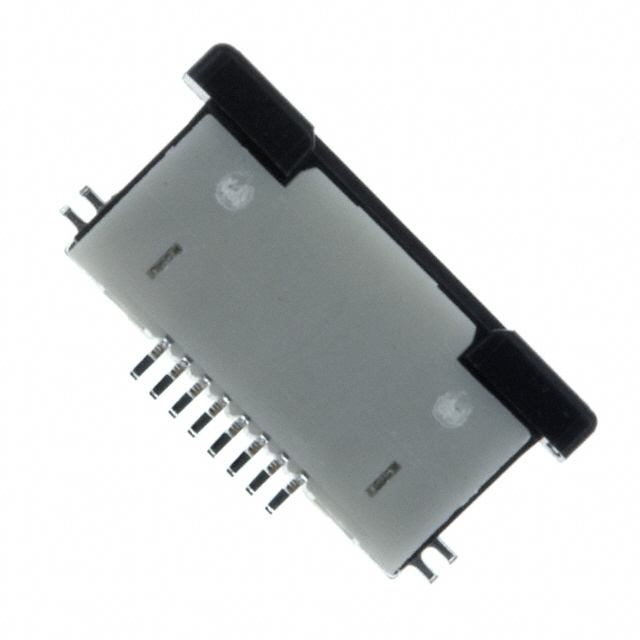

08FLZ-SM2-TB(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 08FLZ-SM2-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 08FLZ-SM2-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 08FLZ-SM2-TB(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN FFC FPC TOP 8POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.363 | $0.318 | $0.299 | $0.287 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.274 | $0.249 | $0.224 | $0.199 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 08FLZ-SM2-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN FFC FPC TOP 8POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97687 pcs | Data sheet | FLZ Connector (RoHS) |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FLZ |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | 455-1964-6 | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 24 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T | Housing Color | Gray |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA6T), Nylon 6T |
| Actuator Color | Black |
