Home > Products > RF/IF and RFID > RF Amplifiers > NJG1159PHH-TE1

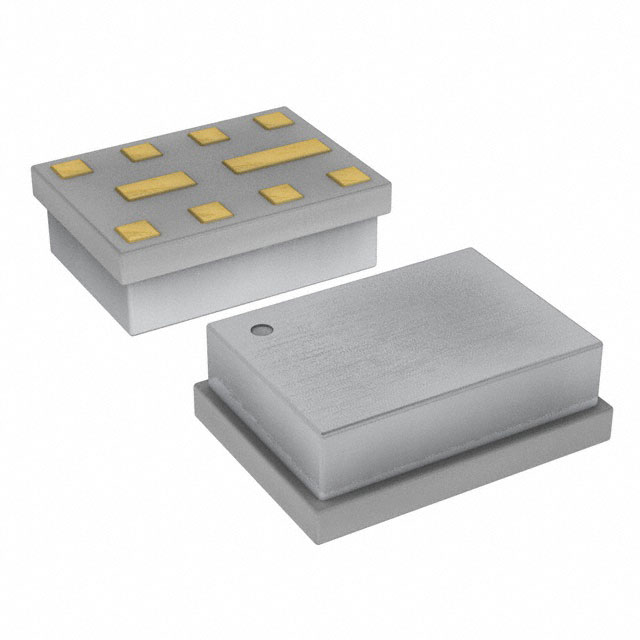

NJG1159PHH-TE1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NJG1159PHH-TE1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NJG1159PHH-TE1
Manufacturer	JRC Corporation / NJRC
Description	IC AMP GALIL 1.575/1.602GHZ MOD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 77288 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$0.573	$0.507	$0.458	$0.40
	$0.351	$0.31	$0.245

Product parameter
Data sheet

Product parameter

Part Number	NJG1159PHH-TE1	Manufacturer	JRC Corporation / NJRC
Description	IC AMP GALIL 1.575/1.602GHZ MOD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	77288 pcs	Data sheet	NJG1159PHH
Category	RF/IF and RFID	Voltage - Supply	1.5 V ~ 3.3 V
Test Frequency	-	Supplier Device Package	Module
Series	-	RF Type	Galileo, GLONASS, GPS
Packaging	Cut Tape (CT)	Package / Case	Module
P1dB	-	Other Names	NJG1159PHH-TE1CT
Noise Figure	1.7dB	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gain	16dB	Frequency	1.575GHz, 1.602GHz
Detailed Description	RF Amplifier IC Galileo, GLONASS, GPS 1.575GHz, 1.602GHz Module	Current - Supply	3.7mA
