Home > Products > RF/IF and RFID > RF Amplifiers > NJG1105F-TE1

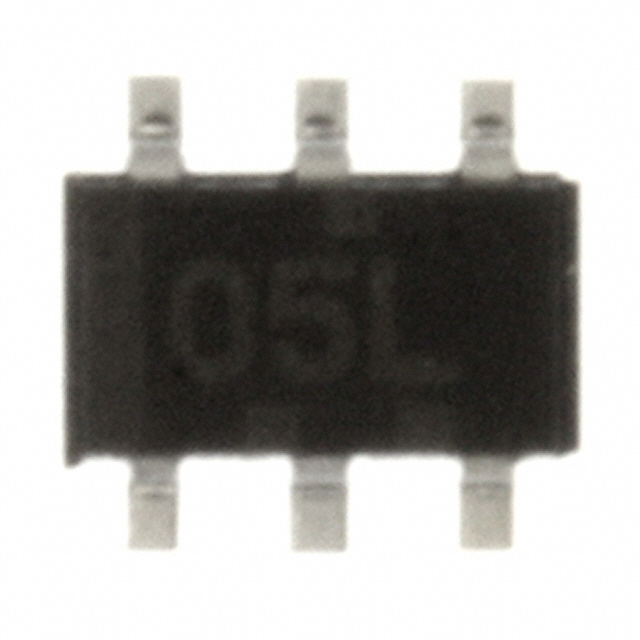

NJG1105F-TE1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NJG1105F-TE1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NJG1105F-TE1
Manufacturer	JRC Corporation / NJRC
Description	IC AMP CEL 1.8/1.9/2.1GHZ 6MTP
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 70979 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$1.077	$0.973	$0.869	$0.782
	$0.695	$0.608	$0.504

Product parameter
Data sheet

Product parameter

Part Number	NJG1105F-TE1	Manufacturer	JRC Corporation / NJRC
Description	IC AMP CEL 1.8/1.9/2.1GHZ 6MTP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	70979 pcs	Data sheet	NJG1105F
Category	RF/IF and RFID	Voltage - Supply	2.7 V ~ 5.5 V
Test Frequency	1.86GHz	Supplier Device Package	6-MTP
Series	-	RF Type	Cellular, W-CDMA, CDMA, GSM, UMTS
Packaging	Cut Tape (CT)	Package / Case	MTP6
P1dB	1dBm ~ 5dBm	Other Names	NJG1105F-TE1CT NJG1105FTE1
Noise Figure	1.7dB ~ 2dB	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Gain	17dB ~ 21dB	Frequency	1.8GHz, 1.9GHz, 2.1GHz
Detailed Description	RF Amplifier IC Cellular, W-CDMA, CDMA, GSM, UMTS 1.8GHz, 1.9GHz, 2.1GHz 6-MTP	Current - Supply	7mA ~ 8.5mA
