SMBS001D00

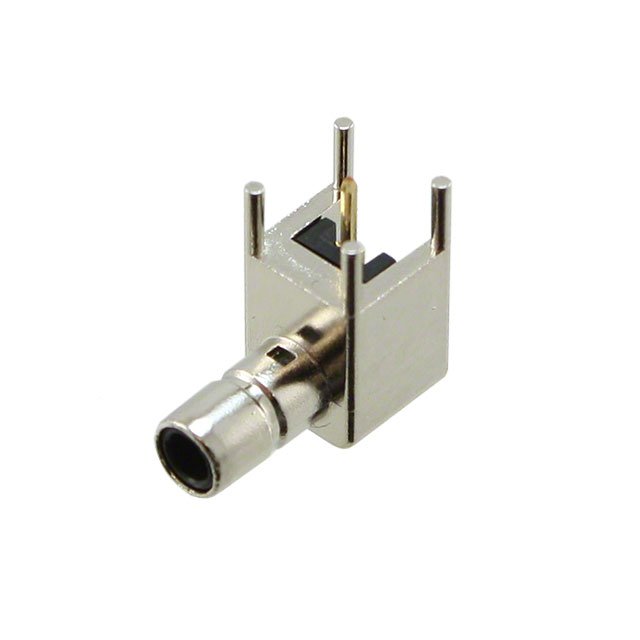

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMBS001D00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMBS001D00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMBS001D00 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN SMB RCPT R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 72 pcs | ||||
|---|---|---|---|---|---|
| $2.464 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMBS001D00 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN SMB RCPT R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15367 pcs | Data sheet | RF Coaxial ConnectorsSMBS001D00 |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 3GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Syndiotactic Polystyrene (SPS) | Detailed Description | SMB Connector Receptacle, Male Pin 50 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Zinc Alloy | Body Finish | Nickel |
