SMBR004D00

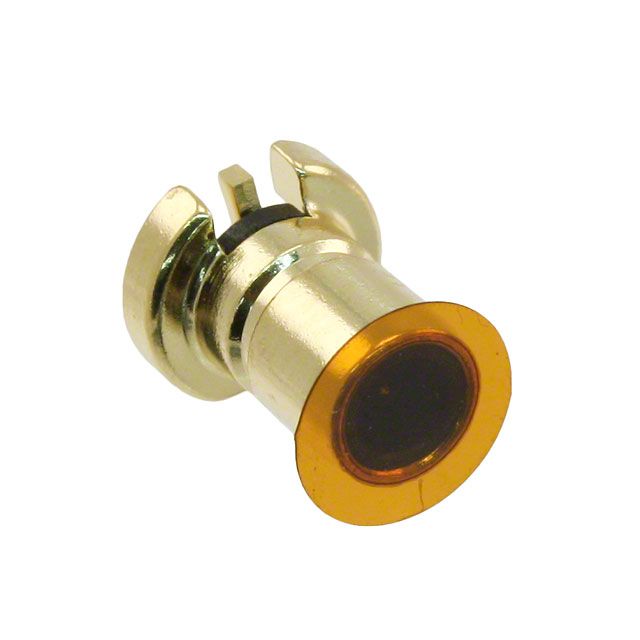

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMBR004D00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMBR004D00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMBR004D00 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN SMB RCPT STR 50 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.953 | $0.865 | $0.812 | $0.777 | $0.742 | |
| 250 pcs | 500 pcs | 1800 pcs | 3600 pcs | ||
| $0.671 | $0.618 | $0.512 | $0.494 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMBR004D00 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN SMB RCPT STR 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74339 pcs | Data sheet | RF Coaxial ConnectorsSMBR004D00 DrawingSMB Series Datasheet |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 3GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Syndiotactic Polystyrene (SPS) | Detailed Description | SMB Connector Receptacle, Male Pin 50 Ohm Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
