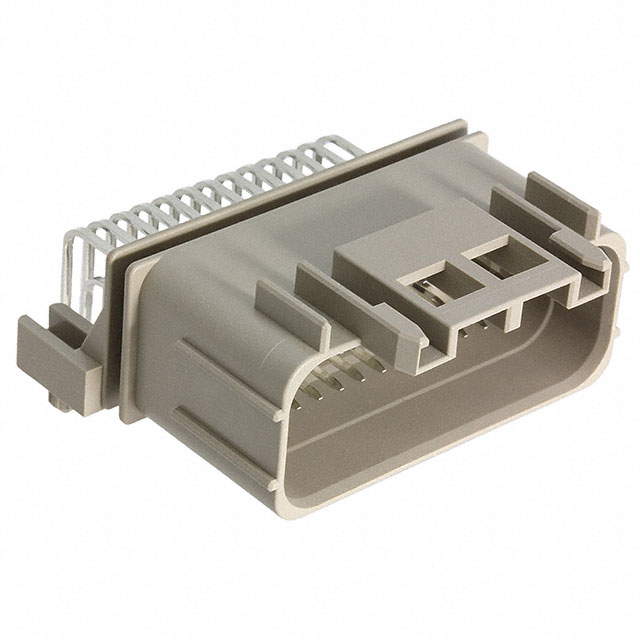

MX47039NF2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MX47039NF2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MX47039NF2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MX47039NF2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG 39POS 2.5MM WATERPROOF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.151 | $7.359 | $7.051 | $6.61 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.39 | $6.037 | $5.861 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MX47039NF2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG 39POS 2.5MM WATERPROOF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6156 pcs | Data sheet | MX47 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX47 |
| Row Spacing - Mating | 0.142" (3.60mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 39 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.760" (19.30mm) |
| Insulation Color | Gray | Ingress Protection | Waterproof |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 39 position 0.098" (2.50mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
