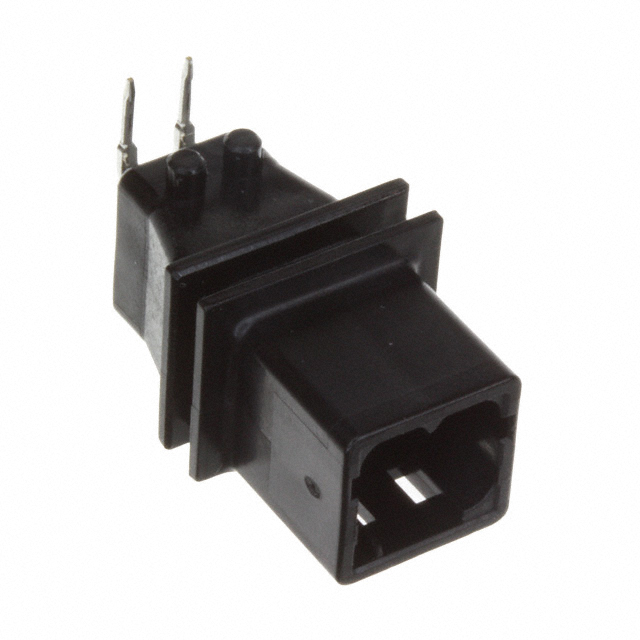

MX44002NF1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MX44002NF1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MX44002NF1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MX44002NF1 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN HEADER PIN R/A 2POS SLD TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1350 pcs |
|---|---|---|---|---|---|
| $1.732 | $1.662 | $1.385 | $1.177 | $1.004 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MX44002NF1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER PIN R/A 2POS SLD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37481 pcs | Data sheet | Transportation GuideMX44 SeriesMX44002NF1 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX44 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 670-2442 | Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.465" (11.80mm) | Insulation Color | Black |
| Ingress Protection | Waterproof | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Board Edge, Through Hole, Right Angle 2 position 0.138" (3.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
