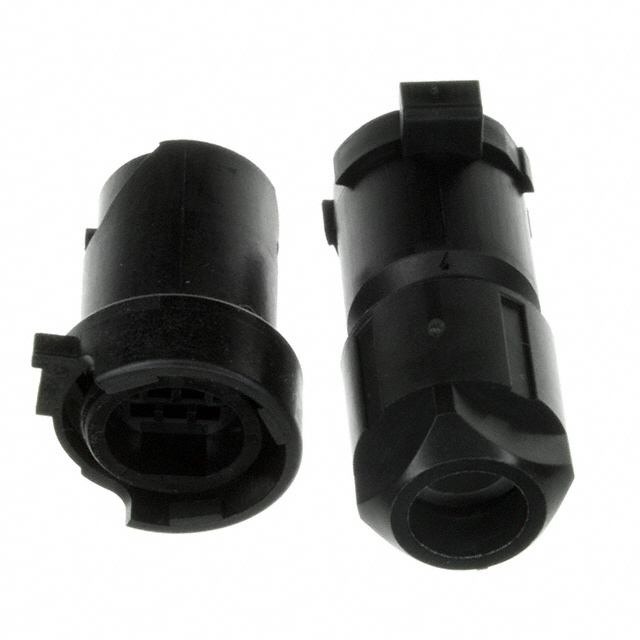

JN1HS10PL2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1HS10PL2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1HS10PL2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1HS10PL2 |
|---|---|
| Manufacturer | JAE Electronics |
| Description | CONN RCPT INLINE 10POS CRIMP PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $3.948 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1HS10PL2 | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN RCPT INLINE 10POS CRIMP PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8089 pcs | Data sheet | Circular ConnectorsJN1 Series DatasheetJN1HS10PLx Drawing |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | 22 |
| Usage | Unshielded | Type Attributes | IP67 - Dust Tight, Waterproof |
| Type | For Male Pins | Stacking Direction | Crimp |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | Synthetic Resin | Series | JN1 |
| RoHS Status | Tray | Plug/Mating Plug Diameter | Black |
| Other Names | 670-1067 | Operating Temperature | -20°C ~ 125°C |
| Number of Positions | 10 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Manufacturer Part Number | JN1HS10PL2 | Large Diameter Supplied | S |
| Insert Material | - | Includes | - |
| Features | Backshell | Expanded Description | 10 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell |
| Description | CONN RCPT INLINE 10POS CRIMP PIN | Current - Max/Contact | Push-Twist |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Shape | Synthetic Resin | Contact Material | N (Normal) |
| Connector Type | Receptacle Housing | Body Material | - |
