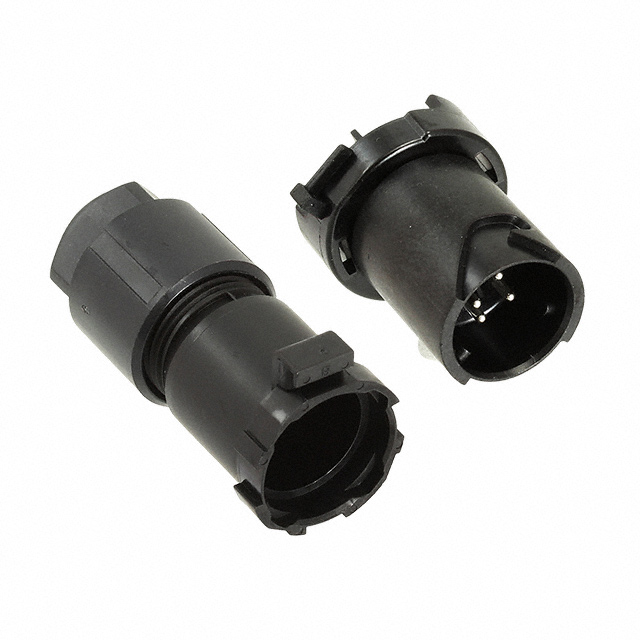

JN1HS04MK1-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JN1HS04MK1-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JN1HS04MK1-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JN1HS04MK1-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.636 | $5.124 | $4.996 | $4.611 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.355 | $3.971 | $3.715 | $3.407 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JN1HS04MK1-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9847 pcs | Data sheet | JN1HS04MK1-R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | S |
| Shell Material | Synthetic Resin | Shell Finish | - |
| Series | JN1 | Packaging | Bulk |
| Other Names | 670-2612 JN1HS04MK1R |
Orientation | N (Normal) |
| Operating Temperature | -20°C ~ 125°C | Number of Positions | 4 (3 + PE) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Push-Twist |
| Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 0.224" ~ 0.287" (5.70mm ~ 7.30mm) |
| Backshell Material, Plating | Synthetic Resin | Applications | - |
