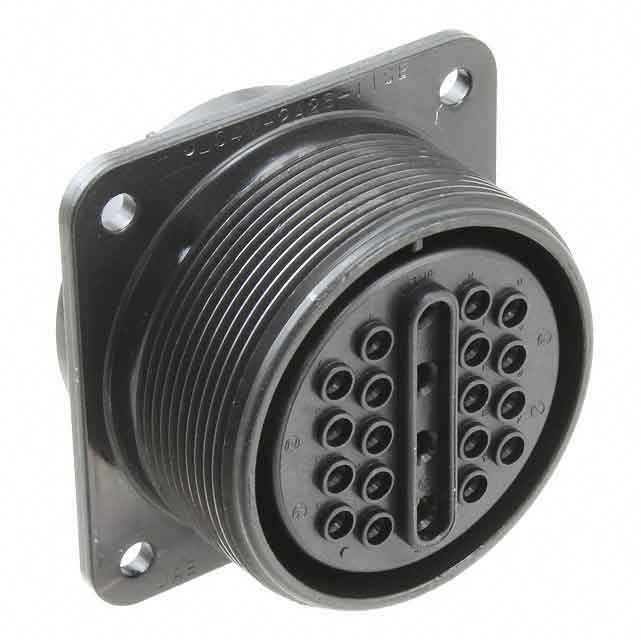

JL04V-2A28-11SE-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL04V-2A28-11SE-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL04V-2A28-11SE-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL04V-2A28-11SE-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT FMALE 22POS SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $14.808 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL04V-2A28-11SE-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT FMALE 22POS SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2662 pcs | Data sheet | JL04V-2A28-11SE(x)-R DrawingCircular ConnectorsJL04V Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC, 250VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 28-11 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL04V | Packaging | Bulk |
| Other Names | 670-2118 JL04V2A2811SER |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 22 (21 + PE) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Silicon Rubber | Ingress Protection | - |
| Features | Ground | Fastening Type | Threaded |
| Detailed Description | 22 (21 + PE) Position Circular Connector Receptacle, Female Sockets Solder Cup Silver | Current Rating | 13A, 23A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
