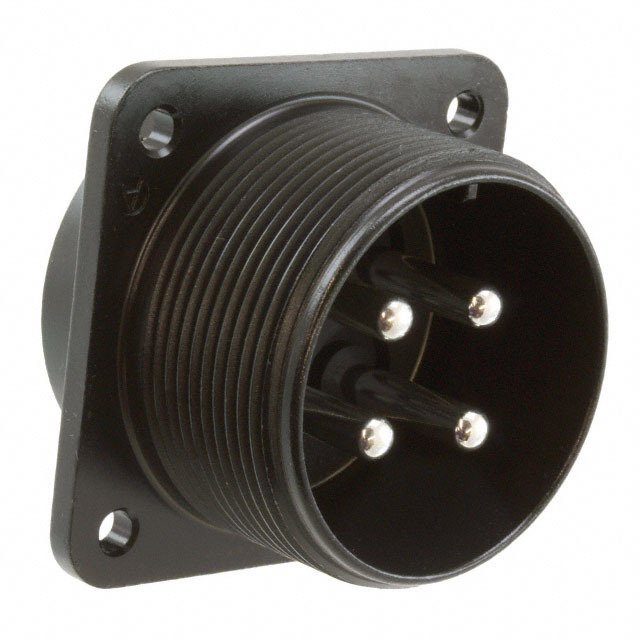

JL04HV-2E22-22PE-B-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL04HV-2E22-22PE-B-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL04HV-2E22-22PE-B-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL04HV-2E22-22PE-B-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.243 | $9.247 | $8.859 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.306 | $8.029 | $7.586 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL04HV-2E22-22PE-B-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5003 pcs | Data sheet | JL04V Series DatasheetJL04HV-2E22-22PE(x)-B-R Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 22-22 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL04HV | Packaging | Bulk |
| Other Names | 670-2117 JL04HV2E2222PEBR |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 4 (3 + PE) |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Silicon Rubber | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Ground | Fastening Type | Threaded |
| Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 46A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 1.299" (33.00mm) |
| Backshell Material, Plating | - | Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
