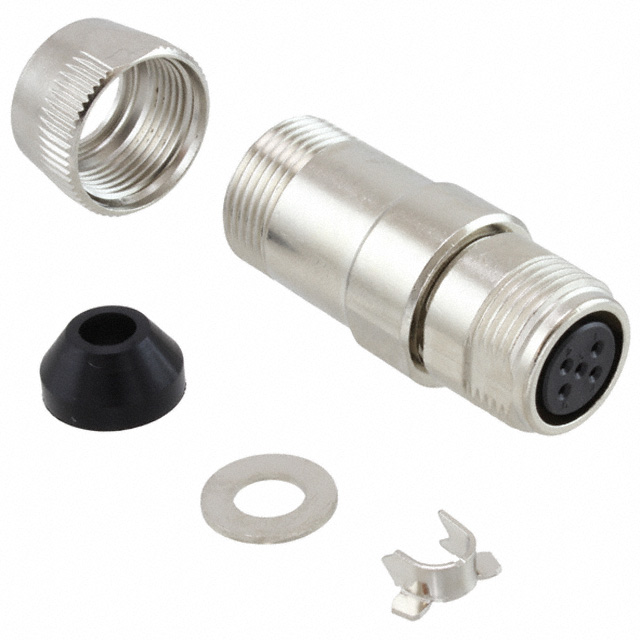

JB1HB05SL2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB1HB05SL2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JB1HB05SL2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JB1HB05SL2 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT HSG FMALE 5POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $7.725 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JB1HB05SL2 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT HSG FMALE 5POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4785 pcs | Data sheet | Circular ConnectorsJB1HB05SLx DrawingJB1 Series Datasheet |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | B5 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | JB1 |
| Packaging | Bulk | Other Names | 670-2132 |
| Orientation | Keyed | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 5 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Backshell, Cable Clamp | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 22 | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
