JB1DB10PL2

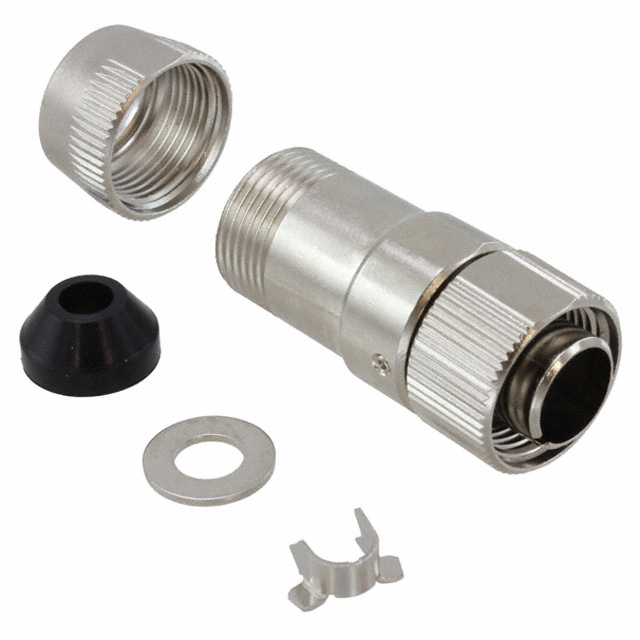

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB1DB10PL2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JB1DB10PL2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JB1DB10PL2 |
|---|---|
| Manufacturer | JAE Electronics |
| Description | CONN PLUG STR 10POS CRIMP PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $8.296 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JB1DB10PL2 | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN PLUG STR 10POS CRIMP PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4066 pcs | Data sheet | Circular ConnectorsJB1 Series DatasheetJB1DB10PLx Drawing |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | 22 |
| Usage | Shielded | Type Attributes | IP67 - Dust Tight, Waterproof |
| Type | For Male Pins | Stacking Direction | Crimp |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | Zinc Alloy | Series | JB1 |
| RoHS Status | Bulk | Plug/Mating Plug Diameter | Silver |
| Other Names | 670-2136 | Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 10 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Manufacturer Part Number | JB1DB10PL2 | Large Diameter Supplied | B10 |
| Insert Material | Zinc Alloy, Nickel | Includes | - |
| Features | Backshell, Cable Clamp, Coupling Nut | Expanded Description | 10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut |
| Description | CONN PLUG STR 10POS CRIMP PIN | Current - Max/Contact | Threaded |
| Coupling Nut Material, Plating | 0.709" (18.01mm) | Coupling Nut Diameter | Nickel |
| Contact Shape | Synthetic Resin | Contact Material | Keyed |
| Connector Type | Plug Housing | Body Material | - |
