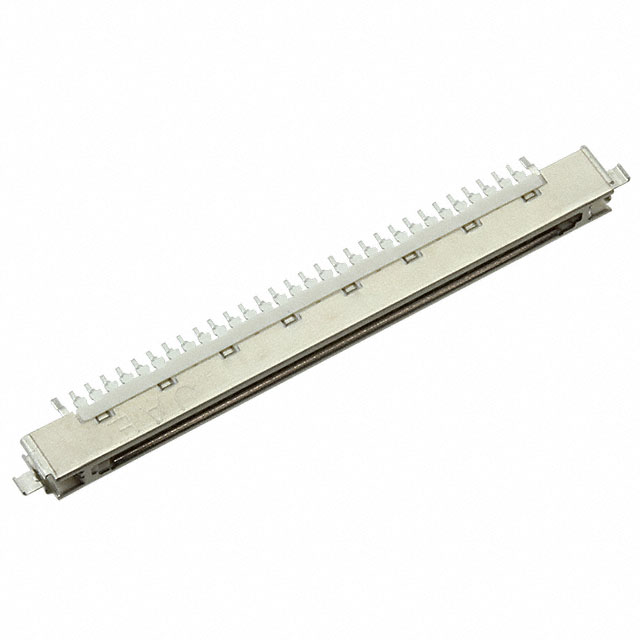

FI-XB30SSLA-HF15
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FI-XB30SSLA-HF15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FI-XB30SSLA-HF15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FI-XB30SSLA-HF15 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT 1MM 30POS R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.724 | $5.205 | $4.424 | $3.774 | $3.461 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FI-XB30SSLA-HF15 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 1MM 30POS R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9833 pcs | Data sheet | FI-XB30SSLA-HF15 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | FI-X | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 670-2893 FI-XB30SSLA-HF15-ND |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Board Cutout, Bottom Mount, Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | - | Insulation Color | Beige |
| Ingress Protection | - | Features | Grounding Pins, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 30 Position Receptacle Connector 0.039" (1.00mm) Board Cutout, Bottom Mount, Surface Mount, Right Angle Gold |
| Current Rating | 1A per Contact | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
