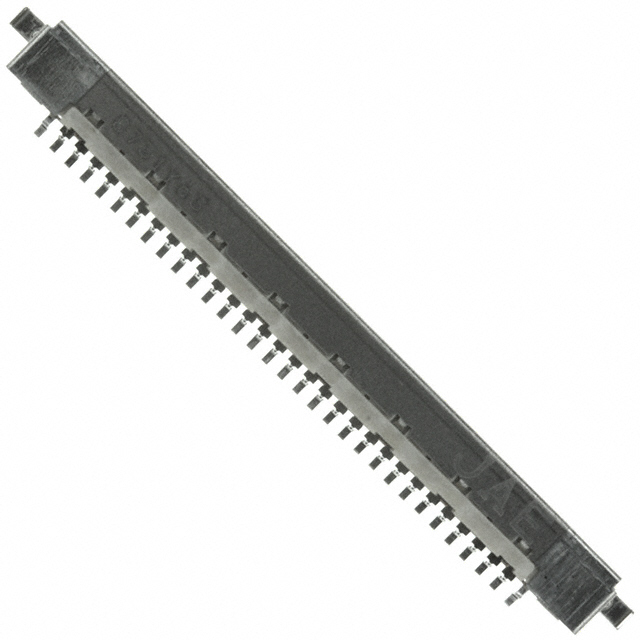

FI-X30SSL-HF-R2500
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FI-X30SSL-HF-R2500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FI-X30SSL-HF-R2500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FI-X30SSL-HF-R2500 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT 1MM 30POS R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FI-X30SSL-HF-R2500 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 1MM 30POS R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4271 pcs | Data sheet | Board-to-Cable ConnectorsFI-X30SSL-HF-R2500 Pkg DrawingFI-X30SSL-HF Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | FI-X | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 670-1219-2 | Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.091" (2.30mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Grounding Pins, Shielded, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 30 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold | Current Rating | 1A per Contact |
| Contact Type | Non-Gendered | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
