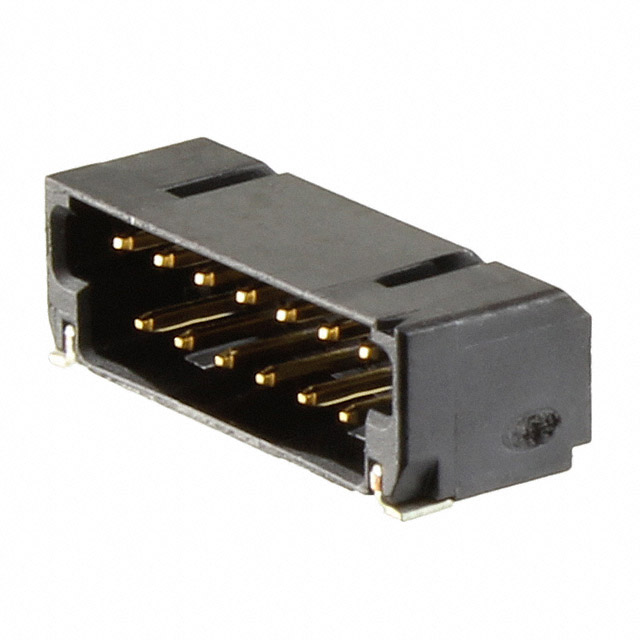

FI-W13P-HFE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FI-W13P-HFE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FI-W13P-HFE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FI-W13P-HFE |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT 1.25MM 13POS SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 187 pcs | ||||
|---|---|---|---|---|---|
| $0.984 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FI-W13P-HFE | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 1.25MM 13POS SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32199 pcs | Data sheet | Board-to-Cable ConnectorsFI Series DatasheetFI-W(1x,x1)P-HFE Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | FI |
| Row Spacing - Mating | 0.055" (1.40mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 670-1850 FI-W13P-HFE-ND FIW13PHFE |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 13 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.146" (3.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount, Right Angle 13 position 0.049" (1.25mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin or Tin-Alloy | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
