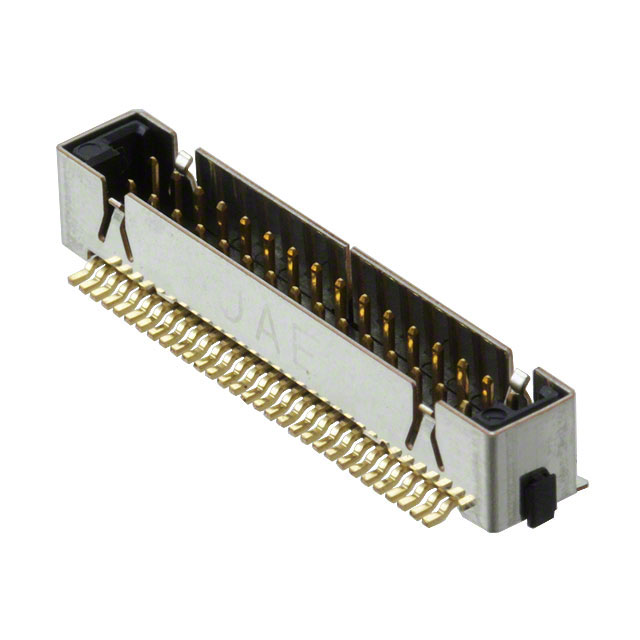

FI-TWE31PB-VF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FI-TWE31PB-VF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FI-TWE31PB-VF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FI-TWE31PB-VF |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT 1.25MM 31POS SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FI-TWE31PB-VF | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 1.25MM 31POS SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5745 pcs | Data sheet | Board-to-Cable ConnectorsFI Series DatasheetFI-TWE31P(B)-VF Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | FI |
| Row Spacing - Mating | 0.055" (1.40mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 670-1847 FI-TWE31PB-VF-ND FITWE31PBVF |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 31 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.95mm, 8.15mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.157" (4.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Surface Mount 31 position 0.049" (1.25mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
